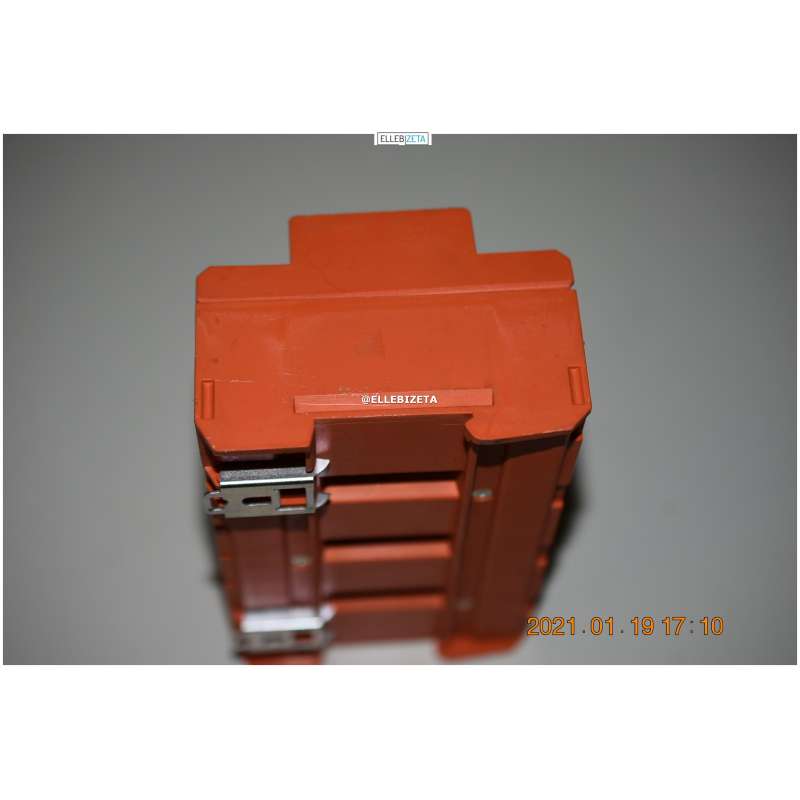

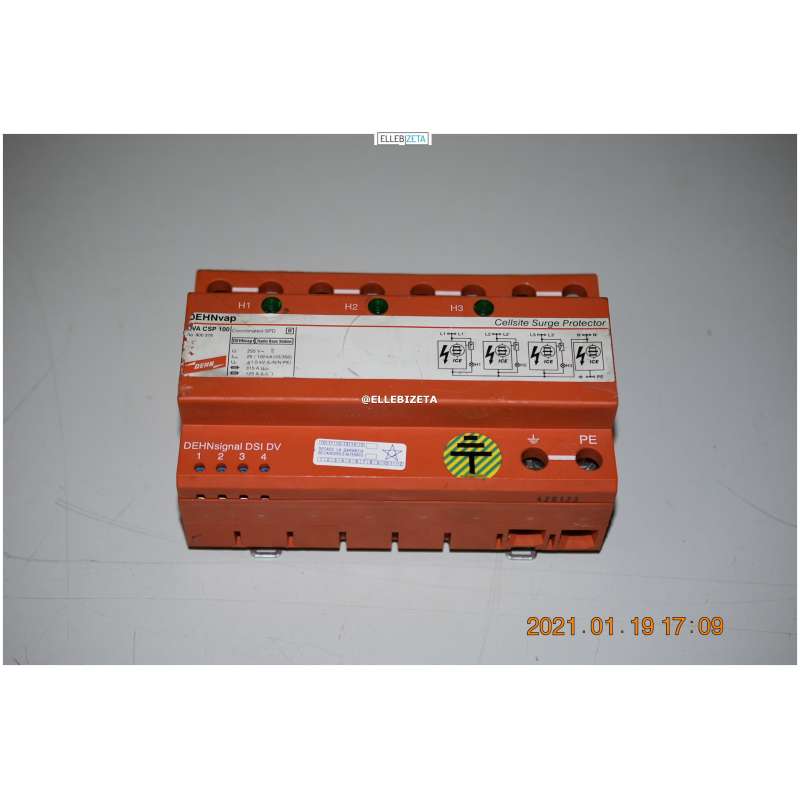

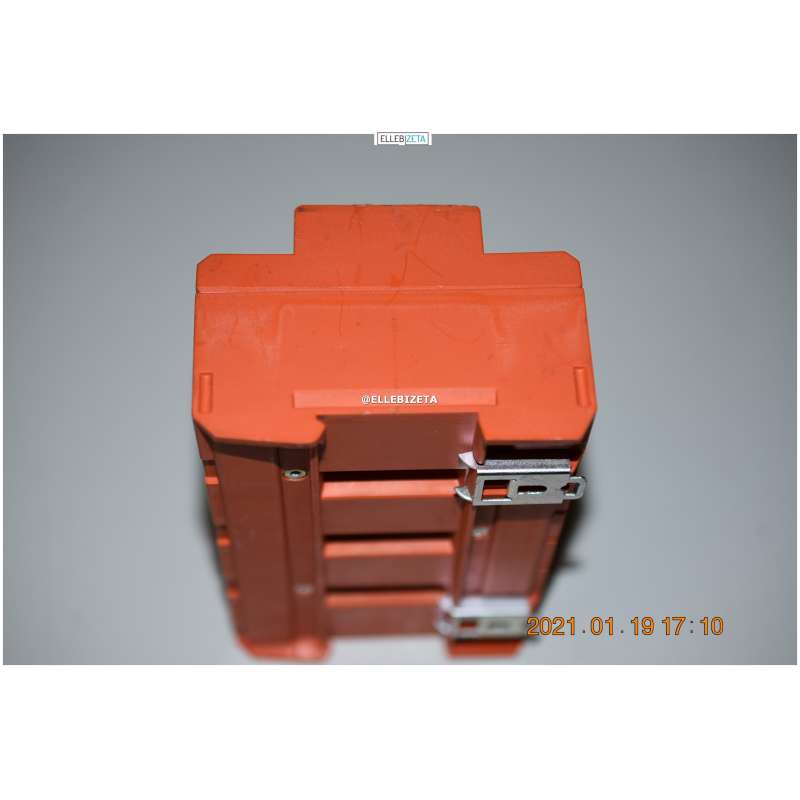

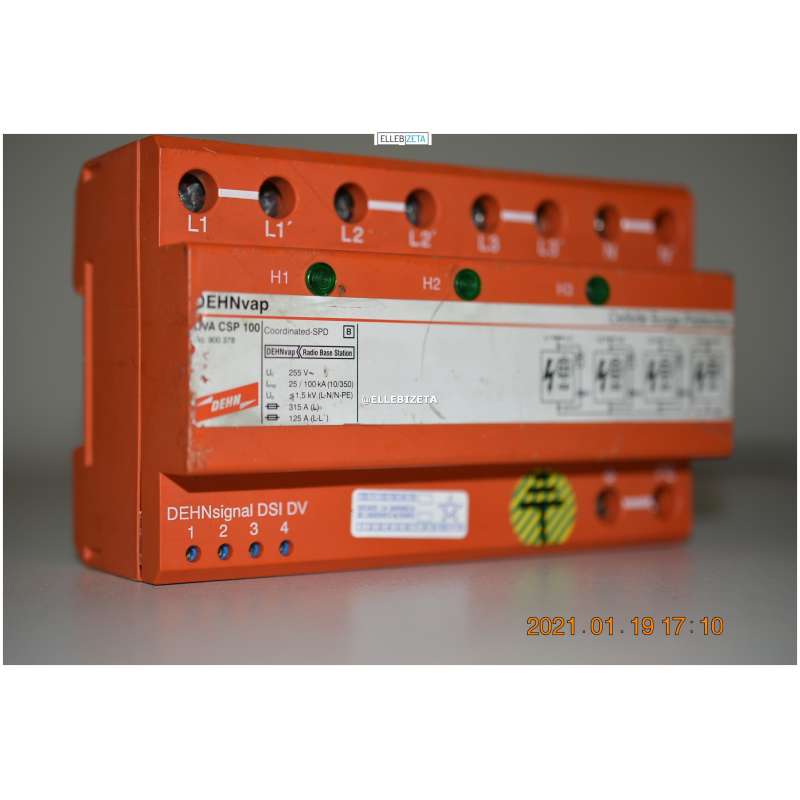

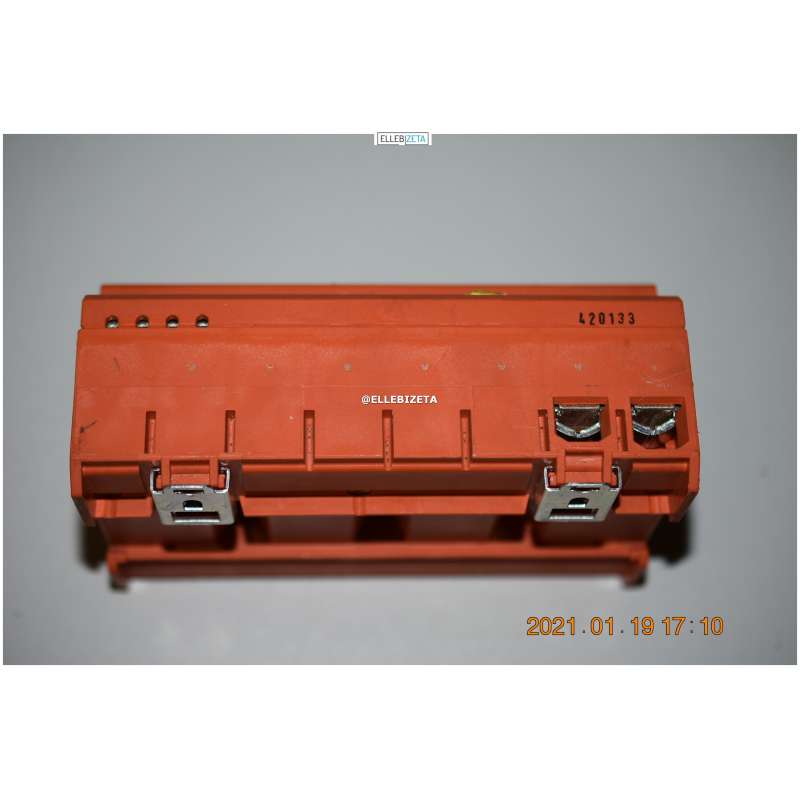

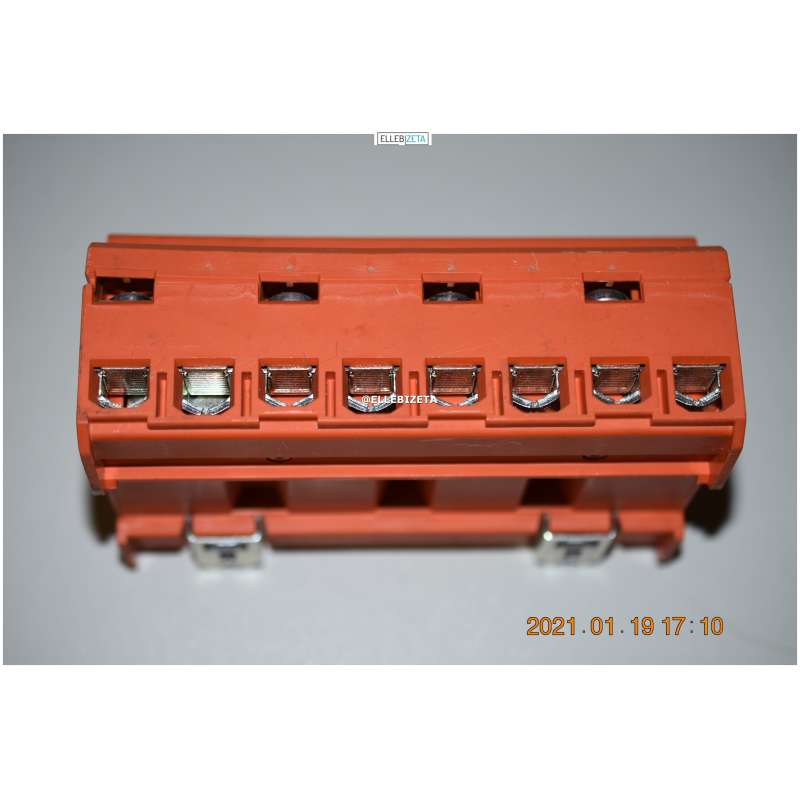

Scaricatore DEHNvap DVA CSP 100 Surge protector (2938/CD4SX/Q1)
2938/CD4SX
Usato
90,00 € tax incl.
tax incl.
1 Item
Warning: Last items in stock!
| Tipo | Scaricatore di sovratensione |
| Descrizione delle condizioni | Senza confezione |
| Marca | Dehnguard |
952515 DEHNGUARD M FM DG M YPV SCI 1000 FM
Scaricatore sovratensione
SPECIFICHE
Part No. 900 360 SPD according to EN 61643-11 / ... IEC 61643-11 type 1 + type 2 / class I + class II Energy coordination with terminal equipment (≤ 10 m) type 1 + type 2 + type 3 Nominal voltage (a.c.) (UN) 230 / 240 V (50 / 60 Hz) Max. continuous operating voltage (a.c.)[L-N]/[N-PE] (UC) 264 V (50 / 60 Hz) Max. continuous operating voltage (a.c.) [N-PE] (UC (N-PE)) 255 V (50 / 60 Hz) Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal) 100 kA Specific energy [L1+L2+L3+N-PE] (W/R) 2.50 MJ/ohms Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp) 25 / 100 kA Specific energy [L-N]/[N-PE] (W/R) 156.25 kJ/ohms / 2.50 MJ/ohms Nominal discharge current (8/20 µs) (In) 25 / 100 kA Voltage protection level [L-N]/[N-PE] (UP) ≤ 1.5 kV / ≤ 1.5 kV Follow current extinguishing capability [L-N]/[N-PE] (Ifi) 25 kArms / 100 Arms Follow current limitation/Selectivity no tripping of a 20 A gG fuse up to 25 kArms (prosp.) Response time (tA) ≤ 100 ns Max. backup fuse (L) up to IK = 25 kArms 315 A gG Max. backup fuse (L) up to IK > 25 kArms 200 A gG Max. backup fuse (L-L') 125 A gG Temporary overvoltage (TOV) [L-N] (UT) – Characteristic 440 V / 120 min. – withstand Temporary overvoltage (TOV) [N-PE] (UT) – Characteristic 1200 V / 200 ms – withstand Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h withstand Operating temperature range [parallel]/[series] (TU) -40°C...+80°C / -40°C...+60°C Operating state/fault indication green / red Number of ports 1 Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9 ) (min.) 10 mm2 solid / flexible Cross-sectional area (L1, L2, L3, N, PE) (max.) 50 mm2 stranded / 35 mm2 flexible Cross-sectional area (L1', L2', L3', N', 9 ) (max.) 35 mm2 stranded / 25 mm2 flexible For mounting on 35 mm DIN rails acc. to EN 60715 Enclosure material thermoplastic, red, UL 94 V-0 Place of installation indoor installation Degree of protection IP 20 Capacity 8 module(s), DIN 43880 Approvals KEMA Type of remote signalling contact changeover contact Switching capacity (a.c.) 250 V / 0.5 A Switching capacity (d.c.) 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A Cross-sectional area for remote signalling terminals max. 1.5 mm2 solid / flexible Weight 1,3 kg Customs tariff number (Comb. Nomenclature EU) 85363090 GTIN 4013364111332 PU 1
Ulteriori informazioni su sito del produttore
Scaricatore sovratensione
SPECIFICHE
Part No. 900 360 SPD according to EN 61643-11 / ... IEC 61643-11 type 1 + type 2 / class I + class II Energy coordination with terminal equipment (≤ 10 m) type 1 + type 2 + type 3 Nominal voltage (a.c.) (UN) 230 / 240 V (50 / 60 Hz) Max. continuous operating voltage (a.c.)[L-N]/[N-PE] (UC) 264 V (50 / 60 Hz) Max. continuous operating voltage (a.c.) [N-PE] (UC (N-PE)) 255 V (50 / 60 Hz) Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal) 100 kA Specific energy [L1+L2+L3+N-PE] (W/R) 2.50 MJ/ohms Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp) 25 / 100 kA Specific energy [L-N]/[N-PE] (W/R) 156.25 kJ/ohms / 2.50 MJ/ohms Nominal discharge current (8/20 µs) (In) 25 / 100 kA Voltage protection level [L-N]/[N-PE] (UP) ≤ 1.5 kV / ≤ 1.5 kV Follow current extinguishing capability [L-N]/[N-PE] (Ifi) 25 kArms / 100 Arms Follow current limitation/Selectivity no tripping of a 20 A gG fuse up to 25 kArms (prosp.) Response time (tA) ≤ 100 ns Max. backup fuse (L) up to IK = 25 kArms 315 A gG Max. backup fuse (L) up to IK > 25 kArms 200 A gG Max. backup fuse (L-L') 125 A gG Temporary overvoltage (TOV) [L-N] (UT) – Characteristic 440 V / 120 min. – withstand Temporary overvoltage (TOV) [N-PE] (UT) – Characteristic 1200 V / 200 ms – withstand Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h withstand Operating temperature range [parallel]/[series] (TU) -40°C...+80°C / -40°C...+60°C Operating state/fault indication green / red Number of ports 1 Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9 ) (min.) 10 mm2 solid / flexible Cross-sectional area (L1, L2, L3, N, PE) (max.) 50 mm2 stranded / 35 mm2 flexible Cross-sectional area (L1', L2', L3', N', 9 ) (max.) 35 mm2 stranded / 25 mm2 flexible For mounting on 35 mm DIN rails acc. to EN 60715 Enclosure material thermoplastic, red, UL 94 V-0 Place of installation indoor installation Degree of protection IP 20 Capacity 8 module(s), DIN 43880 Approvals KEMA Type of remote signalling contact changeover contact Switching capacity (a.c.) 250 V / 0.5 A Switching capacity (d.c.) 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A Cross-sectional area for remote signalling terminals max. 1.5 mm2 solid / flexible Weight 1,3 kg Customs tariff number (Comb. Nomenclature EU) 85363090 GTIN 4013364111332 PU 1
Ulteriori informazioni su sito del produttore
