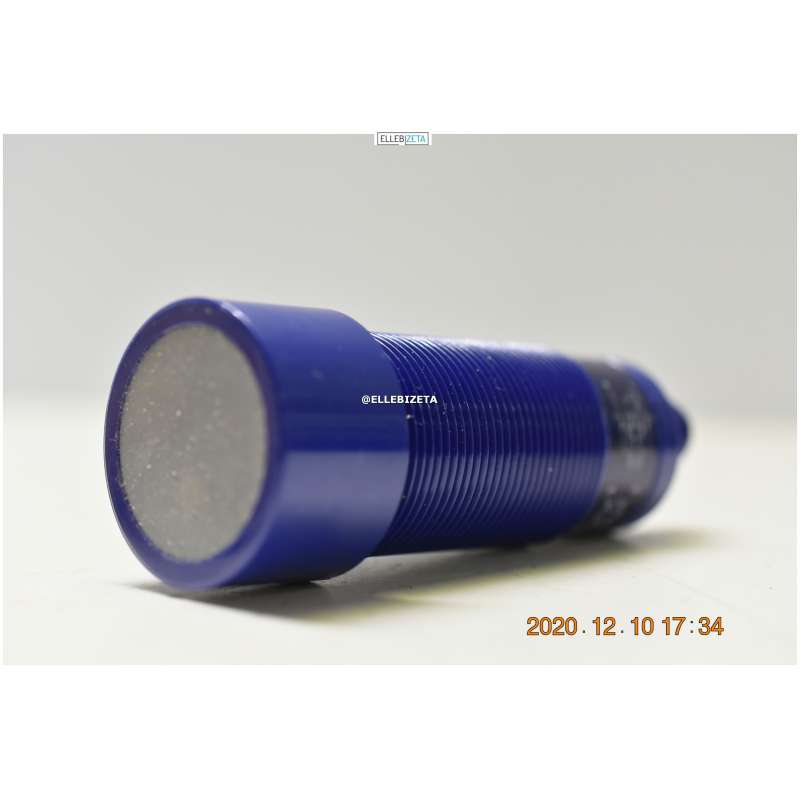

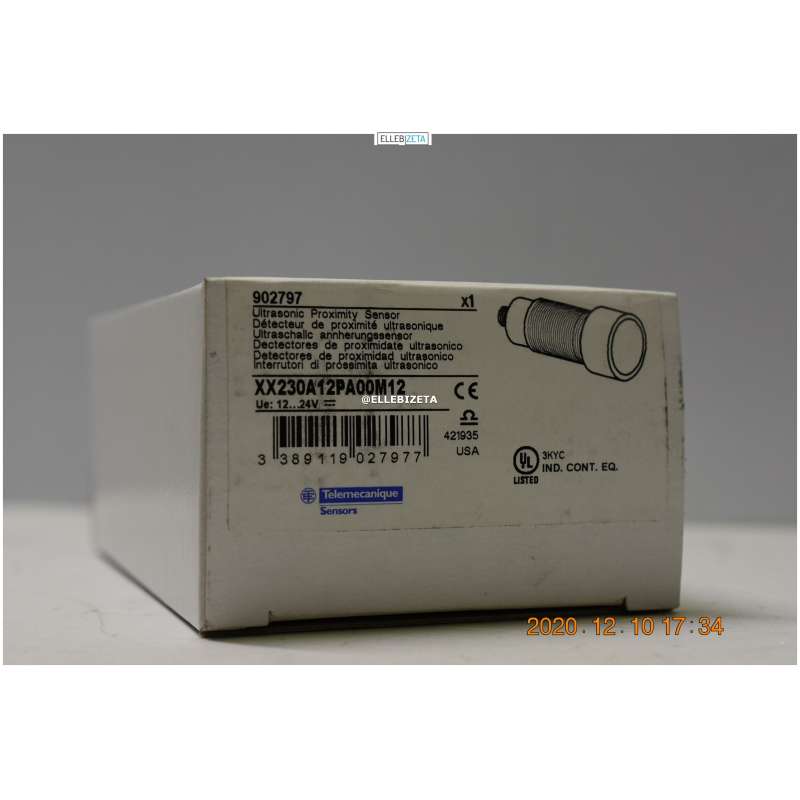

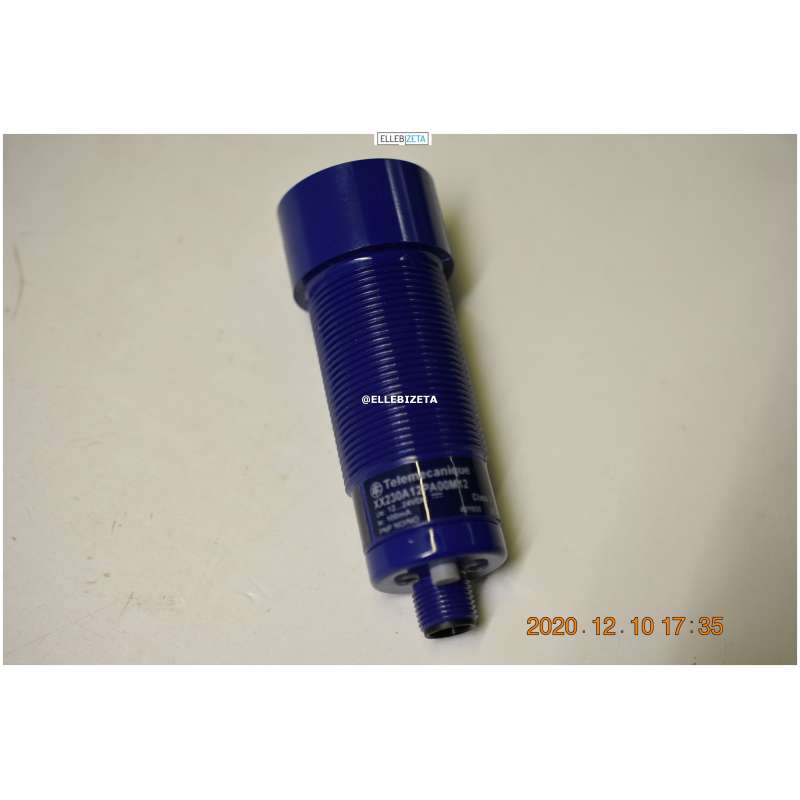

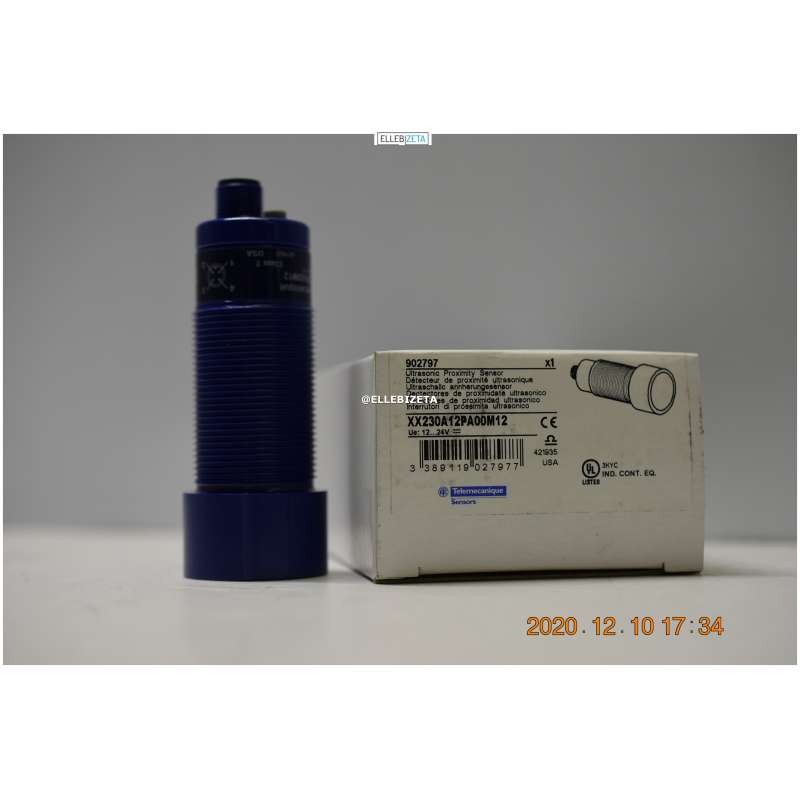

Telemecanique XX230A12PA00M12 Ultrasonic Sensor Proximity (2865/CD5SXC1)

Reference: 2865/CD5SXC1/Q10

Condition: Nuovo

200,00 € tax incl.

5 Item Items

More info
Data sheet

Tipo	Sensore
Marca	Telemecanique
Codice Telemecanique	XX230A12PA00M12
Fabbricante	Schneider Electric
Responsabile dei Prodotti	Schneider Electric

Telemecanique XX230A12PA00M12 Ultrasonic Sensor Proximity
Specifiche

MAIN
Range of product	OsiSense XX
Sensor type	Ultrasonic sensor
Series name	General purpose
Sensor name	XX2
Sensor design	Cylindrical M30
Detection system	Diffuse
[Sn] nominal sensing distance	1 m adjustable with teach push-button
Material	Plastic
Type of output signal	Discrete
Discrete output function	2 NO
Wiring technique	4-wire
Discrete output type	PNP
[Us] rated supply voltage	12...24 V DC with reverse polarity protection

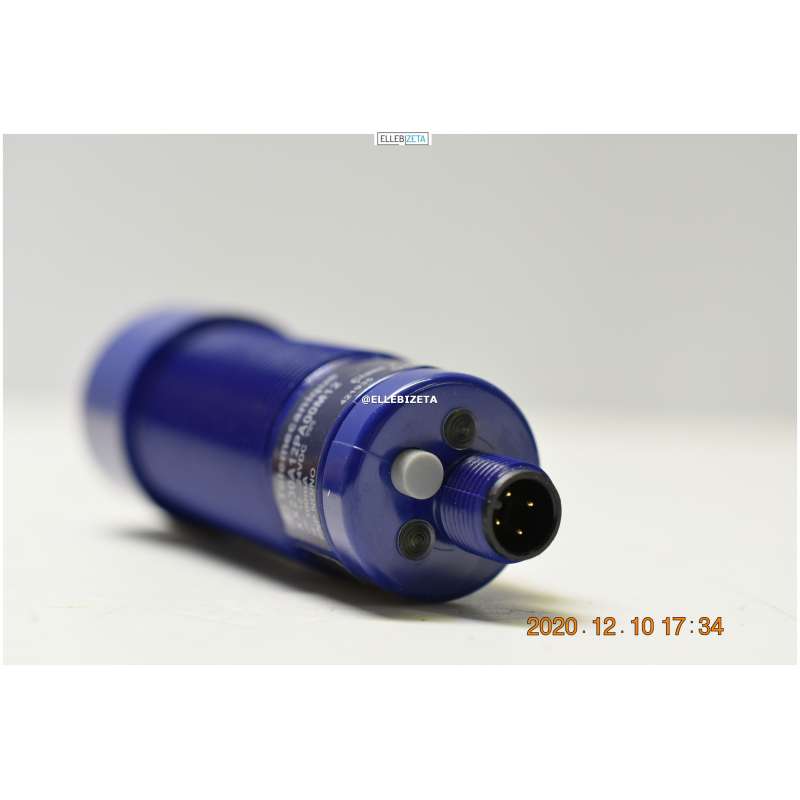

Electrical connection	Male connector M12 4 pins
Product specific application	For 2 levels monitoring
[Sd] sensing range	0.051…0.991 m
Beam angle	10 °
IP degree of protection	IP67 conforming to IEC 60529
COMPLEMENTARY
Enclosure material	ULTEM
Front material	Silicone
Thread type	M30 x 1.5
Supply voltage limits	10…28 V DC
Function available	Without synchronisation mode
[Sa] assured operating distance	0.051…0.991 m (teach mode)
Maximum differential travel	2.5 mm
Blind zone	0…51 mm
Transmission frequency	200 kHz
Repeat accuracy	0.9 %
Deviation angle from 90° of object to be detected	-10…10 °
Minimum size of detected object	Cylinder diameter 1.6 mm at 0.635 m
Status LED	Output state: 1 LED (green/red (flashing)) Setting-up assistance: 1 LED (green/red (flashing)) Distance indication: 1 LED (yellow)
Current consumption	100 mA
Maximum switching current	100 mA with overload and short-circuit protection
Maximum voltage drop	1 V
Maximum delay first up	1000 ms
Maximum delay response	150 ms
Maximum delay recovery	1000 ms
Marking	CE
Threaded length	45 mm
Height	35 mm
Width	35 mm
Depth	85 mm
Net weight	0.091 kg
ENVIRONMENT
Standards	IEC 60947-5-2
