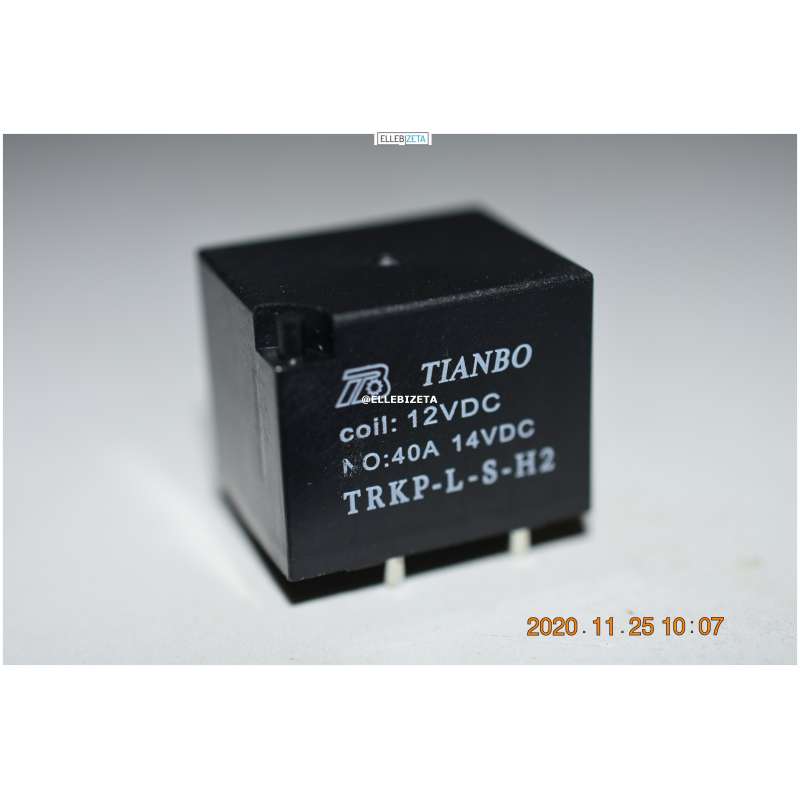

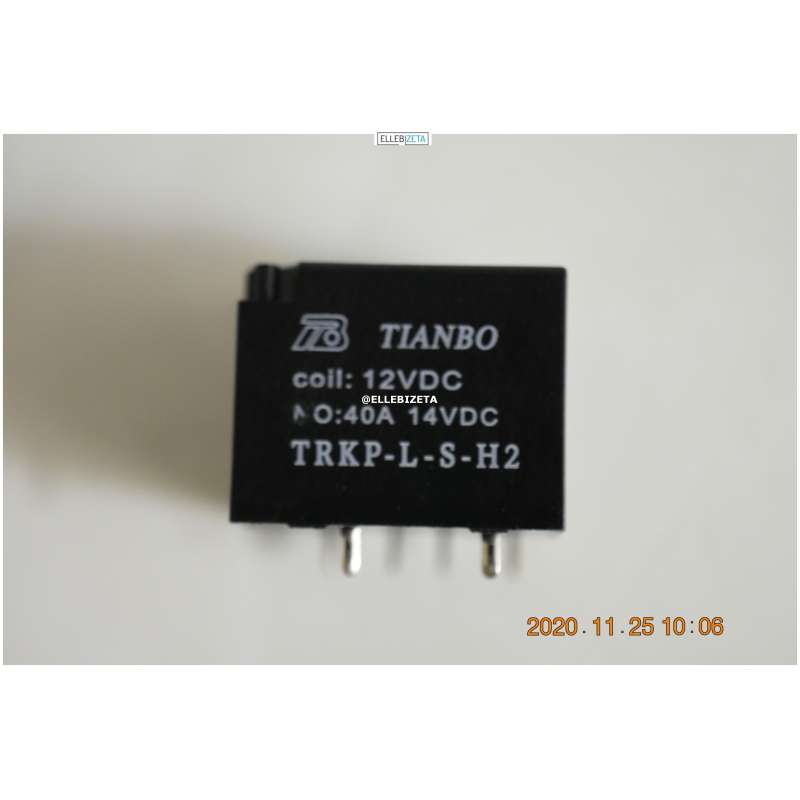

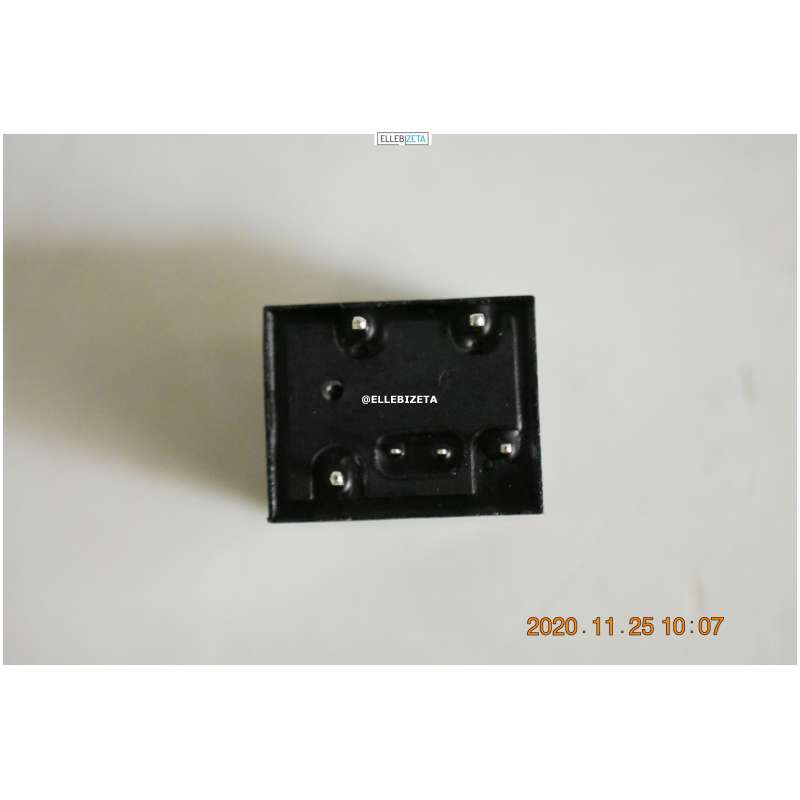

RELE' TIANBO TRKP-L-S-H2 BOBINA 12VDC - 2 Pezzi (CC1/2776)

Reference: TIANBO TRKP-L-S-H2

Condition: Nuovo

6,00 € tax incl.

9 Item Items

More info

RELÈ TIAMBO TRKP-L-S-H2 SPST, BOBINA 12VDC, CONTATTI: 40A @ 14VDC, MONTAGGIO PCB, 21x26x21 2 PEZZI
Features 40A continuous rating 85 oC PC board terminals Inrush current 100A Open & sealed version available
CONTACT DATA Contact Form 1A/1C Contact Material AgNi/AgSnO Contact Ratings NO:40A 14VDC NC:30A 14VDC Max Switching Voltage 30VDC Max Switching Current 40A Max Switching Power 560W Contact Resistance 100m Max at 6VDC 1A Life Expectancy Electrical 100,000 Operations(at30Operations/minute) Machanical 10,000,000 Operations.Insulation Resistance 100M Min at 500VDC Dielectric Strength Between Open Contacts 500VAC(for one minute) Between Contacts and coil 750VACfor one minute) Operate Time 5ms Release Time 4ms Temperature Range -40 oC to+70 oC Shock Resistance 20G,11ms half sine wave pulse Vibration Resistance 10-55Hz,1.5mm Humidity 40-85% Weight Approx 21g
