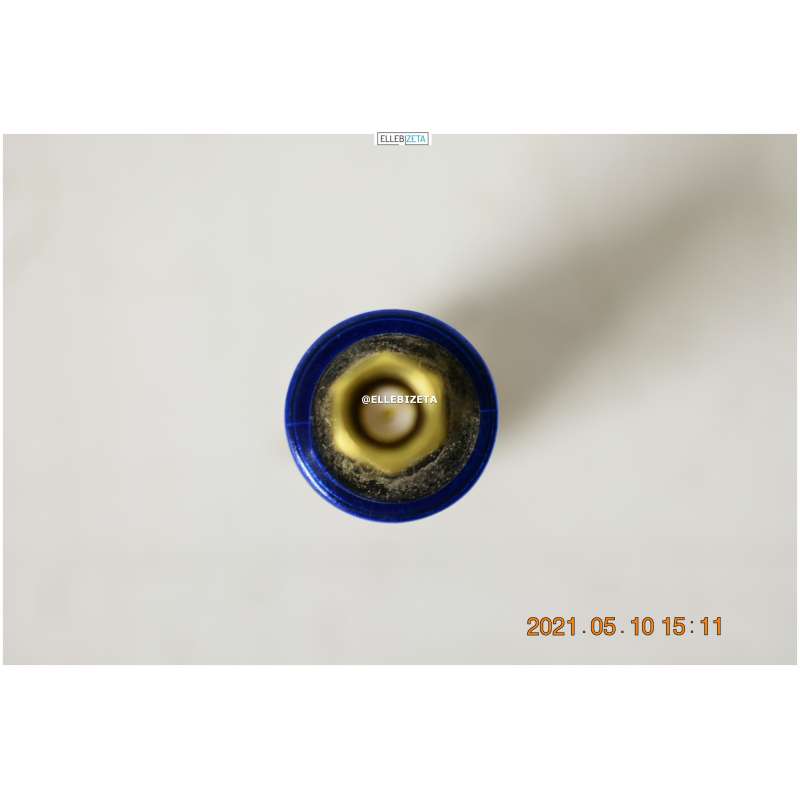

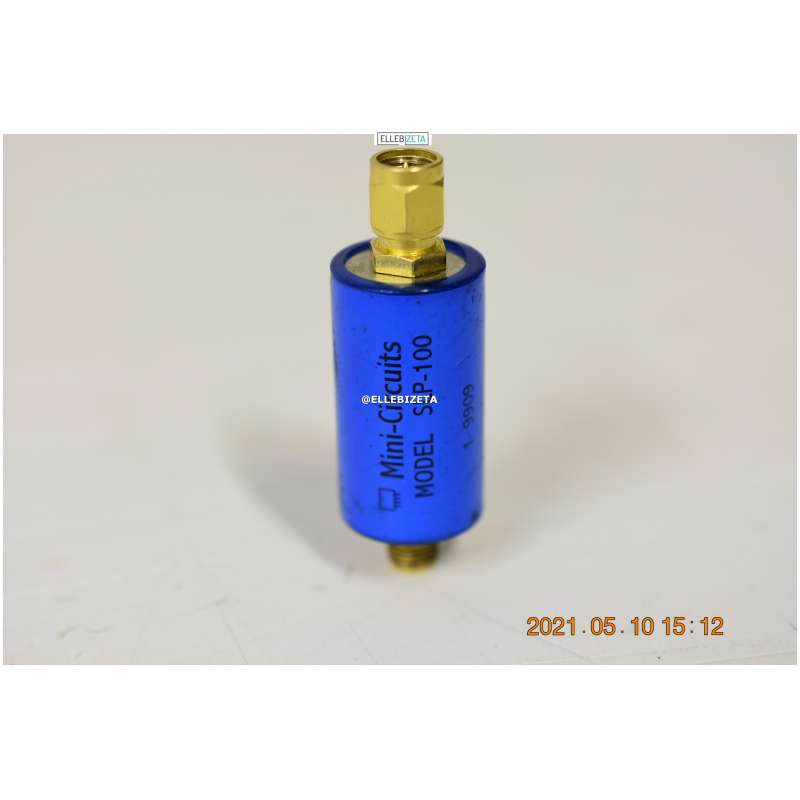

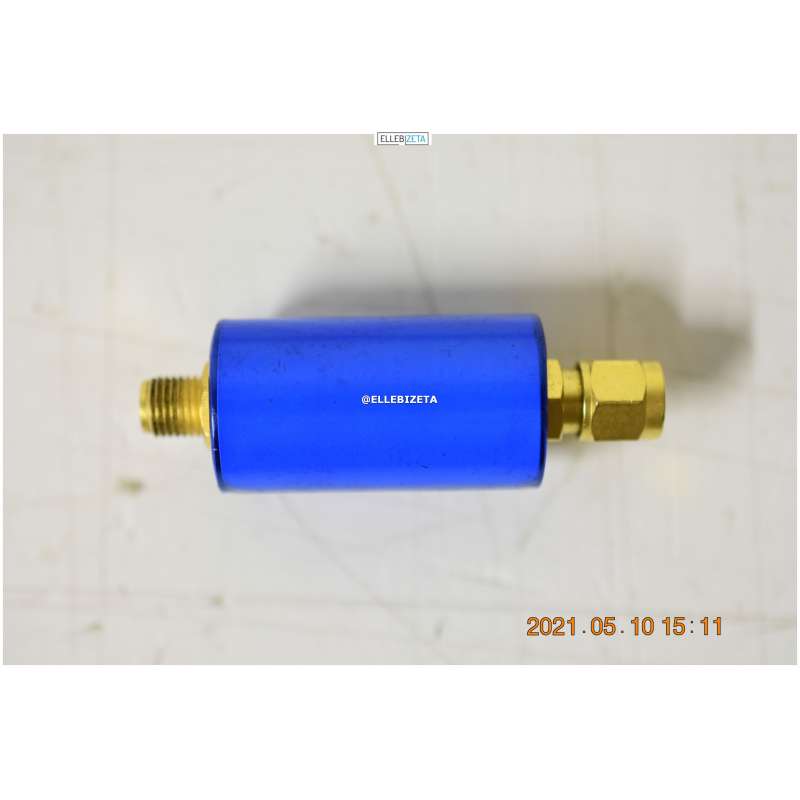

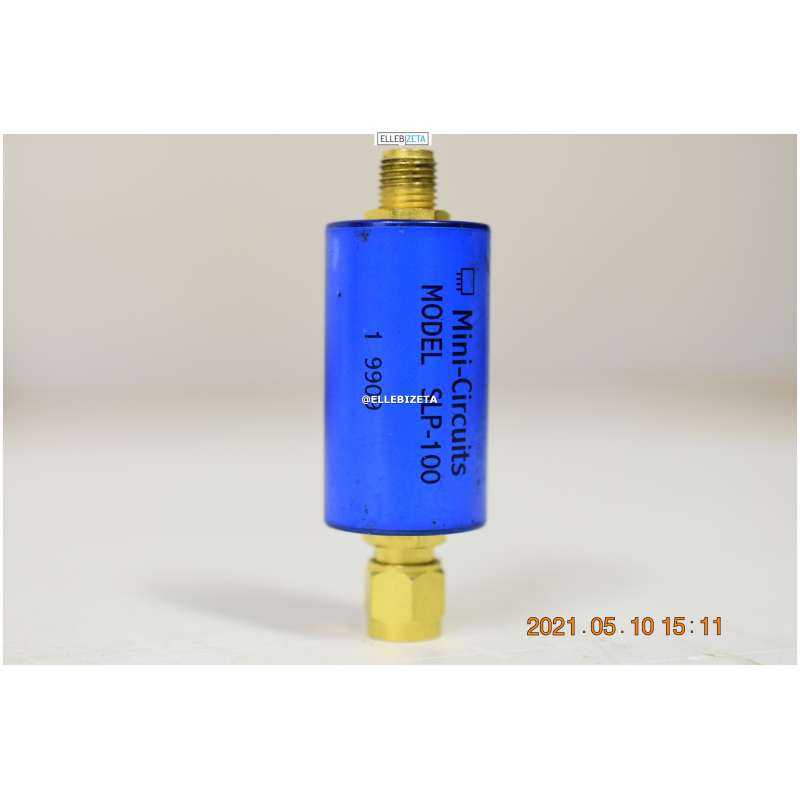

Mini-Circuits SLP-100 Filtro Passa basso Coassialle SMA 50 ohm Dc to 98 Mhz

Reference: 3336/ED2/C1

Condition: Usato

23,00 € tax incl.

3 Item Items

Warning: Last items in stock!

More info
Data sheet

Tipo	Filtro AF
Marca	Mini-Circuits
Modello	SLP-100

Mini-Circuits SLP-100 Filtro Passa basso Coassialle SMA 50 ohm Dc to 98 Mhz

Specifiche
Low Pass Filter Electrical Specifications Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power Input 0.5W max. Applications • lab use • test equipment • video equipment Features • good attenuation rate, 1.35 typ. 20dB/ 3dB BW ratio • rugged shielded case • other SLP models available with wide selection of cut-off frequencies Return Loss (dB) Frequency (MHz) Group Delay (nsec) _ x σ Low Pass Filter SLP-100+ REV. C M151107 SLP-100+ 200522 Coaxial 50Ω DC to 98 MHz PASSBAND (MHz) fco (MHz) Nom. STOPBAND (MHz) VSWR (:1) (loss < 1 dB) (loss 3 dB) (loss > 20 dB) (loss > 40 dB) Passband Typ. Stopband Typ. DC-98 108 146-189 189-400 1.7 1.
Materiale usato in ottime condizioni
Ulteriori informazioni sul sito del produttore
